GPS TRACKER INTEGRATED CAMERA MOBILE DVR DF821-X1
Full HD 1090 hard disk recorder - 4 channels AHD + 1 IP Camera -
H.265 compression standard - Harddisk HĐ/SSD 2TB - 4G/GPS/RFID (compliant to QCVN-31/2104/BGTVT(Decree no. 86/2014/NĐ-CP) and circular no. 12/2020/BGTVT (NĐ10/2020/NĐ-CP (decree 10/2020/NĐ-CP)
1. Supporting 4 channels of AHD 1080P + 1 IP CAM (Full HD), compression standard of H.264/H265
2. CHIP GSM: 2G/3G/4G. supporting realtime remote access via PC/laptop/handphone. The picture will be transferred to government every 3-5 minutes following transportation regulation.
3. CIP GPS/G-Sensor. Route tracking data will be stored to tracker up to 30 days.
4. RFID reader to track driver ID
5. Storage: HĐ/SSD up to 2Tb, and recording Video file up to 1500 hours
6. Power circuit ranges from 8-36V. Overload protection with low power/interruption/reversion.
7. Output 12VDC/3Amp
8. Video recording after engine off: Setting up to 24hours
9. Video setting: Auto/Manual, voice recording, etc.
10. Show and record driver status, vehicle driver. Enable to connect to fuel level, temperature, trailer, LCD, rear camera, etc...
11. Integrating many kind of transportation mean: Bus, truck, car, lorry truck, concrete mixing truck, etc.
12. Following government circulars no. 12/2020/BGTVT of decree no. 10/2020/NĐ-CP.

- Product code: 07KSG
- Origin: Singapore
- Number of jacks: 07
- Current: 10A, 230V~
- Charging port: 5V, 3.4A
- Cable cross-section: 2 x 0.75mm
- Voltage: 10A, 230V~
- 3 meter long cord (extremely strong)
- Use time: 5-7 years (Super durable _ Safe)

- Đèn bàn quả địa cầu

- Gồm 16 bóng đèn LED trắng và vàng.

- Nút nhấn cảm ứng dùng để điều chỉnh ánh sáng phù hợp.

- Ba chế độ sáng: Ánh sáng tự nhiên – ánh sáng vàng – ánh sáng trắng

- Nút Bật/tắt nguồn được thiết kế ở phía sau đèn.



Thông số kỹ thuật:

- Độ sáng tối đa: >=400 LUX

- Công suất tiêu thụ: 5W

- Dãy màu: 2700K-6500K

- Pin Lithium: 2000mAh

Made by: UCOMEN Singapore
Product group: Safety electrical socket
Code: PA-GE1-U2
- Smart design
- 02 USB standard ports
- Can be charged many electrical products at the same time

Product feature:

Multi purpose UComen charger support you to save space, time when you decide to change your current individual chargers to one Ucomen charger.

Keep your battery life stable:

UCOMEN 2 USB charger uses power circuit at USB output: 5V - 2.4A, total suitable to any type of handphones, smart electrical devices without any concerning of battery life time or device performance.
Input circuit: 16A - 250V.

Small and strong:
Producing with PVC fire proof material under modern production lines, the charger becomes most famous products on the shelfs of many stores of supermarket chains.

Technical specification:

- Ucomen Singapore original
- PVC material
- Model PA-GEA-01SU2
- Dimension: 10 x 5 x 7 (cm)

18 months warranty

Made by: UCOMEN Singapore
Product group: Safety power extension socket
Code: PMS-VN2-04KSG
- Light PVC, fire-proof
- Child protection
- Monolithic copper core
- Schuko standard

Technical specification:
1. Safety socket:

- Produced following Germany safety electric socket standard (GS/EN)
- Triangle screw designed to avoid any breaking
- 4000V power circuit test within 1 second
- Composite PVC material, fire proof and anti-explosion
- Monolithic copper core
- At 750 degree celsius: No short-circuit.
- Rounded angles to avoid any dangerous drop or collision

2. Multi function:

- Anti-over load switch up to 2500 w.
- 3 meters cords

3. Reliable:

- Commit: switch will not be out of order within 10.000 times on/off
- Commit: socket holes will not be lossen within 10.000 times of plug and unplug
- Testing dropping up to 100 times at the high of 60cm without deformation.
- Commit: No electric leakage at USB port(s)
- The power extension socket will power off automatically whenever overload.
- Commitment: There will be no fire at above 850 degree celsius.

4. Long duration:

- Designed for use from 5 to 7 years.
- Tested with changing temperature suddenly without deformation

5. After sales:
- Change new one within 18 months

Made by: UCOMEN Singapore
Product group: Safety power extension socket
Code: PMS-VN1-03KSU2
- Light PVC, fire-proof
- Child protection
- Monolithic copper core
- Schuko standard

Technical specification:
1. Safety socket:

- Produced following Germany safety electric socket standard (GS/EN)
- Triangle screw designed to avoid any breaking
- 4000V power circuit test within 1 second
- Composite PVC material, fire proof and anti-explosion
- Monolithic copper core
- At 750 degree celsius: No short-circuit.
- Rounded angles to avoid any dangerous drop or collision

2. Multi function:

- Anti-over load switch
- 3 meters cords
- 2 USB ports, 5V, 2.4A

3. Reliable:

- Commit: switch will not be out of order within 10.000 times on/off
- Commit: socket holes will not be lossen within 10.000 times of plug and unplug
- Testing dropping up to 100 times at the high of 60cm without deformation.
- Commit: No electric leakage at USB port(s)
- The power extension socket will power off automatically whenever overload.
- Commitment: There will be no fire at above 850 degree celsius.

4. Long duration:

- Designed for use from 5 to 7 years.
- Tested with changing temperature suddenly without deformation

5. After sales:
- Change new one within 18 months

Specifications of safety power socket
+ Number of separate holes: 4
+ Number of separate switches: 4
+ Suitable current: 10A, 230V
+ Cable cross-section: 2 x 0.75mm
Power cord length: 3m
+ Load capacity: 2500W

#safety socket #Ucomen socket

Made by: UCOMEN Singapore
Product group: Safety power extension socket
Code: PMS-VN1-04KS

Technical specification:
1. Safety socket:

- Produced following Germany safety electric socket standard (GS/EN)
- Triangle screw designed to avoid any breaking
- 4000V power circuit test within 1 second
- Composite PVC material, fire proof and anti-explosion
- Monolithic copper core
- At 750 degree celsius: No short-circuit.
- Rounded angles to avoid any dangerous dropping or collision

2. Multi function:

- Anti-over load switch
- 3 meters cords

3. Reliable:

- Commit: switch will not be out of order within 10.000 times on/off
- Commit: socket holes will not be losen within 10.000 times of plug and unlug
- Testing dropping up to 100 times at the high of 60cm without deformation.
- Commit: No electric leakage at USB port(s)
- The power extension socket will power off automatically whenever overload.
- Commitment: There will be no fire at above 850 degree celsius.

4. Long duration:

- Designed for use from 5 to 7 years.
- Tested with changing temperature suddenly without deformation

5. After sales:
- Change new one within 18 months


Technical specification:

- 04 hole socket
- Power circuit: 10A, 230V~
- Cord: 2 x 0.75mm
- Cord length: 3m
- Load capacity: 2500W

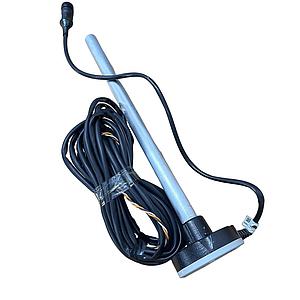

DUT-E Fuel Level Sensor designed for measure accurately oil level remaining in any type of vehicle tank including fixed oil tank.

DUT-E could be considered as a part of fuel monitoring management or using DUT-E instead of standard fuel gauge of vehicle

DUT-E is used suitable as following:
- Measuring current fuel level remaining in tank
- Measuring fuel filling volume
- Measuring fuel loss
- Connected to GPS Vehicle tracker to fuel tracking realtime
- Measuring fuel consumption

DUT-E Fuel Level Sensor designed for measure accurately oil level remaining in any type of vehicle tank including fixed oil tank.

DUT-E could be considered as a part of fuel monitoring management or using DUT-E instead of standard fuel gauge of vehicle

DUT-E is used suitable as following:
- Measuring current fuel level remaining in tank
- Measuring fuel filling volume
- Measuring fuel loss
- Connected to GPS Vehicle tracker to fuel tracking realtime
- Measuring fuel consumption

DUT-E Fuel Level Sensor designed for measure accurately oil level remaining in any type of vehicle tank including fixed oil tank.

DUT-E could be considered as a part of fuel monitoring management or using DUT-E instead of standard fuel gauge of vehicle

DUT-E is used suitable as following:
- Measuring current fuel level remaining in tank
- Measuring fuel filling volume
- Measuring fuel loss
- Connected to GPS Vehicle tracker to fuel tracking realtime
- Measuring fuel consumption

DUT-E Fuel Level Sensor designed for measure accurately oil level remaining in any type of vehicle tank including fixed oil tank.

DUT-E could be considered as a part of fuel monitoring management or using DUT-E instead of standard fuel gauge of vehicle

DUT-E is used suitable as following:
- Measuring current fuel level remaining in tank
- Measuring fuel filling volume
- Measuring fuel loss
- Connected to GPS Vehicle tracker to fuel tracking realtime
- Measuring fuel consumption

DUT-E Fuel Level Sensor designed for measure accurately oil level remaining in any type of vehicle tank including fixed oil tank.

DUT-E could be considered as a part of fuel monitoring management or using DUT-E instead of standard fuel gauge of vehicle

DUT-E is used suitable as following:
- Measuring current fuel level remaining in tank
- Measuring fuel filling volume
- Measuring fuel loss
- Connected to GPS Vehicle tracker to fuel tracking realtime
- Measuring fuel consumption

Forward camera :
- Image sensor: 1/2.7’’ CMOS GC2673
- Signal System: PAL(default) or NTSC
- Lens: 2.1mm/ 2.8mm/ 3.6mm/ Customized optional
- Effective pixels:1920(H)*1080(V)
- Minimum illumination:0.1 LUX / F1.2
- Horizontal Resolutions: AHD: 2 million pixels 1080P
- Frequency:50Hz or 60Hz
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥48dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%)
- Power:1W
- Electric current:100MA
- Visual Angle: 90 degree
- Video compound signal: 1.0Vp – p75Ω
- Dimension: 45MM*45MM*38MM
- Weight: N.W/G.W 0.1kg/0.2kg
- Working temperature: -20℃~60℃ RH95% MAX
- Waterproof level: No
- Include 3m cable

AHD 2 inch Rear-view/Front view camera, Metal shell, Waterproof :
- Image sensor: 1/2.7’’ CMOS GC2673
- Signal System: PAL(default) or NTSC
- Lens: 2.8mm/ 3.6mm/ Customized optional
- Effective pixels:1920(H)*1080(V)
- Horizontal Resolutions: AHD: 2.0 million pixels 1080P
- Frequency:50Hz or 60Hz
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥46dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%)
- Power:3W
- Electric current:250MA
- IR distance: 10M+
- Audio: Optional
- waterproof level: IP68
- Video compound signal: 1.0Vp – p75Ω
- Dimension: 75MM*50MM*75MM
- Weight: N.W/G.W 0.2kg/0.4kg
- Working temperature: -20℃~60℃
- Working humidity: Relative humidity less than 95%
- Waterproof level: IP67
- Include 8m cable

Vehicle Side mount camera, Metal shell, Waterproof :
- Image sensor: 1/2.7’’ CMOS GC2673
- Signal System: PAL(default) or NTSC
- Lens: 2.8mm/ 3.6mm/ Customized optional
- Effective pixels:1920(H)*1080(V)
- Horizontal Resolutions: AHD: 2.0 million pixels 1080P
- Frequency:50Hz or 60Hz
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥46dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%)
- Power:3W
- Electric current:250MA
- IR distance: 10M+
- Audio: Optional
- Video compound signal: 1.0Vp – p75Ω
- Dimension: 80MM*45MM*110MM
- Weight: N.W/G.W 0.2kg/0.4kg
- Working temperature: -20℃~60℃
- Working humidity: Relative humidity less than 95%
- Waterproof level: IP68
- Include 5m cable

Vehicle Side mount camera, Metal shell, Waterproof :
- Image sensor: 1/4’’ V20+H62 CMOS
- Signal System: PAL(default) or NTSC
- Lens: 2.8mm/ 3.6mm/ Customized optional
- Effective pixels:1280(H)*720(V)
- Horizontal Resolutions: AHD: 1.0 million pixels 720P
- Frequency:50Hz or 60Hz
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥46dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%)
- Power:3W
- Electric current:250MA
- IR distance: 10M+
- Audio: Optional
- Video compound signal: 1.0Vp – p75Ω
- Dimension: 80MM*45MM*110MM
- Weight: N.W/G.W 0.2kg/0.4kg
- Working temperature: -20℃~60℃
- Working humidity: Relative humidity less than 95%
- Waterproof level: IP68
- Include 5m cable

AHD 3 inch side mount camera, metal shell, Waterproof :
- Image sensor: 1/2.7’’ CMOS GC2673
- Signal System: PAL(default) or NTSC
- Lens: 2.8mm/ 3.6mm/ Customized optional
- Effective pixels:1920(H)*1080(V)
- Horizontal Resolutions: AHD: 2.0 million pixels 1080P
- Frequency:50Hz or 60Hz
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥46dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%)
- Power:3W
- Electric current:250MA
- IR distance: 10M+
- Audio: Optional
- waterproof level: IP68
- Video compound signal: 1.0Vp – p75Ω
- Dimension: 60MM*85MM*60MM
- Weight: N.W/G.W 0.2kg/0.4kg
- Working temperature: -20℃~60℃
- Working humidity: Relative humidity less than 95%
- Include 8m cable

AHD 3 inch Side mount camera, Metal shell, Waterproof, Wide Angle, StarLight :
- Image sensor: 1/2.9 COMS2053
- Signal System: PAL(default) or NTSC
- Lens: 2.1mm, Customized optional
- Effective pixels:1280(H)*720(V)
- Horizontal Resolutions: AHD: 1 million pixels 720P
- Minimum illumination:0.001 LUX / F1.2
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥48dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%)
- Power:1W
- Electric current:100MA
- Visual Angle: 155°
- Video compound signal: 1.0Vp – p75Ω
- Dimension: 65MM*80MM*60MM
- Weight: N.W/G.W 0.25kg/0.5kg
- Working temperature: -20℃~60℃
- Working humidity: Relative humidity less than 95%
- Waterproof level: IP68
- Include 8m cable
